Grease Injection Systems

Built for Pressure. Designed for the Field.

When the pressure’s real and the conditions are brutal, your grease system has to hold up. No leaks, no breakdowns, no guesswork. That’s why FHE’s Grease Injection Systems are built with the highest-quality components and engineered to keep working where others quit.

Available in 15K, 10K, and 5K models, these systems are quiet, efficient, easy to operate, and built for the kind of fieldwork that chews up lesser gear. Whether you’re working a high-pressure well intervention or need a compact unit that won’t quit, these machines are designed to keep your crew safe, your valve sealed, and your operation running smooth.

Category:

Description

Available in:

5K

10K

15K

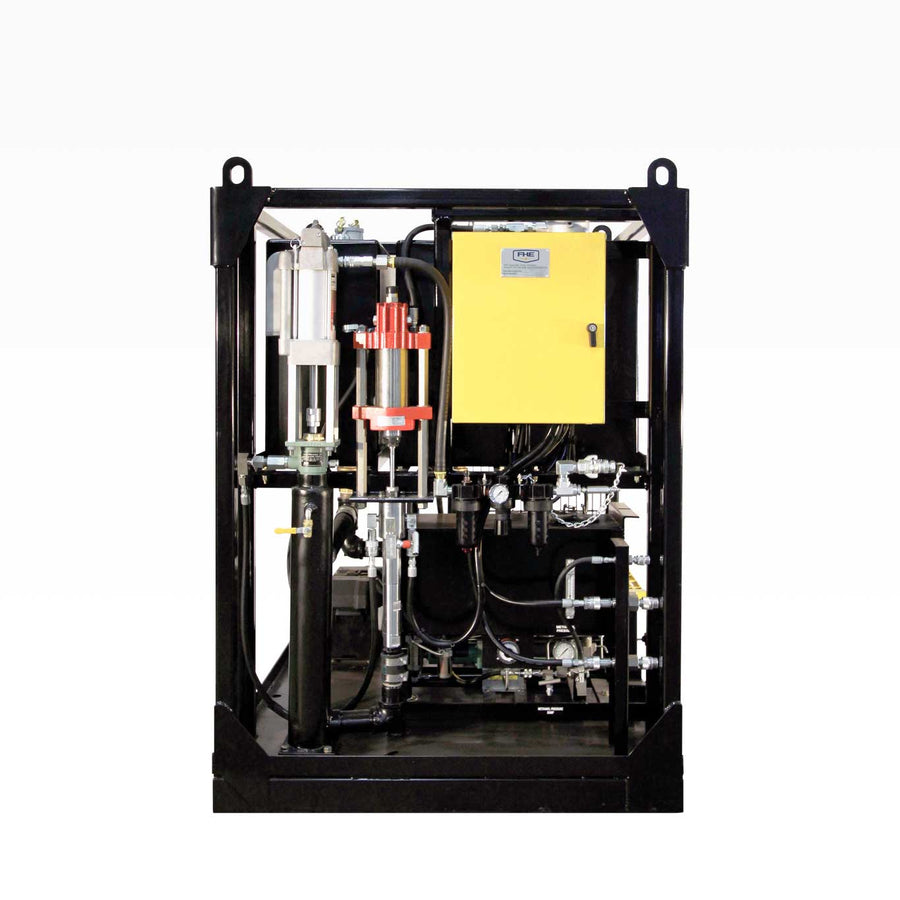

5K

Compact. Custom. Field-hardened.

Need a grease system that doesn’t take up the whole truck but still shows up to work? The 5K unit is compact, rugged, and built with all the essentials, and then some. It’s made for tight setups and long days.

Key Features:

  • Durable, compact steel frame
  • Extra-large lifting eyes + forklift pockets
  • FHE hydraulic-driven primary pump
  • Lincoln Pump-Master III pneumatic backup
  • Clearly labeled control panel + quick-connect bulkhead
  • Fold-down hydraulic valve access
  • Multiple custom options: dual tanks, hose reels & more

It’s easy to move, easy to use, and built tough enough to earn its spot on any site.

10K

Field-proven and simple to run.

The 10K is your sweet spot, tough enough for high-performance work, simple enough for anyone on your crew to run. It’s a clean, smart design made to boost your crew’s efficiency in the field.

Key Features:

  • 54 HP Perkins diesel engine
  • McFarland 12K hydraulic primary pump
  • Lincoln 12K pneumatic backup pump
  • 10-gallon accumulator (cycles valve 3x)
  • Fold-down & graphic control panel for easy operation
  • Labeled hoses at storage bar and wellhead
  • Hand pump backups when you need ‘em

Quiet in the yard. Solid under pressure. Ready to go when you are.

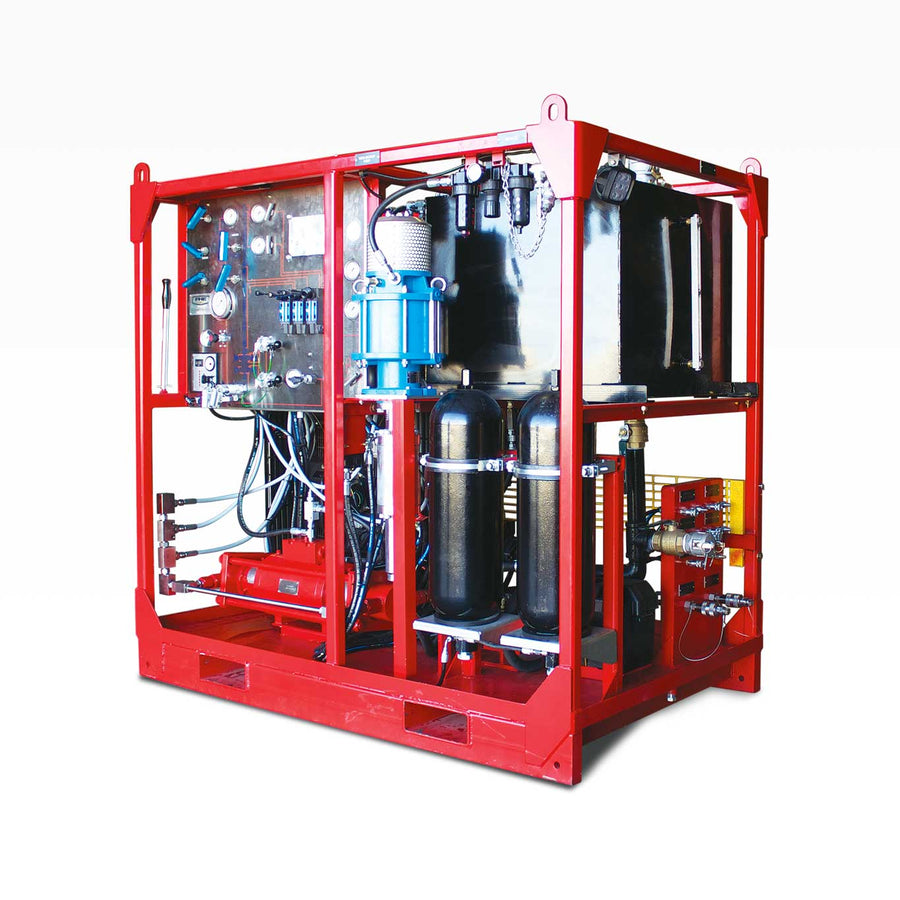

15K

Top-end performance for top-end pressure.

The 15K unit was built for serious well intervention work, high-pressure conditions, hard wear, and no margin for failure. From the Perkins diesel engine to the dual-pump setup and full manual backups, this unit has your back in any condition.

Key Features

  • 54 HP Perkins diesel engine (quiet & dependable)
  • McFarland hydraulic-driven 15K primary pump
  • Lincoln or Wiwa 15K backup pump
  • 10-gallon hydraulic accumulator (cycles wireline valve 3x)
  • Fold-down access panel for full hydraulic control
  • Labeled bulkhead + 100-gallon grease tank
  • Dual safety step for tank access
  • Manual hand-pump backups for emergencies

This system pushes grease hard, holds steady under load, and keeps your operation airtight.

Ready to Run.
Built to Last.

No matter which pressure you’re working under, FHE’s Grease Injection Systems are built to perform in the real world, not just in the shop. Rugged where it counts, reliable when it matters, and ready to roll when the job demands it.

Ask us which system’s right for your crew—or ask about a custom build. We’ll get you what you need.
